Lorex HDIP88BW 8 Camera 8 Channel Weatherproof 2K IP Resolution Security Surveillance System New For Sale

SKU: 77FDA4C6E9A2C0C9

Original price was: $999.00.Current price is: $299.70.

In Stock
Add to wishlist
  • Price match promise

  • Free delivery on all orders

  • Safe & secure transaction

  • Extended Christmas return policy

Description

src=

src=

 Brand new in box & manufacturer direct

src=

 2 year factory warranty

src=

 Remote monitoring using the Flir app

src=

 All original accessories included

src=

 Authorized Lorex dealer

src=

 Ships same or next business day


What s in the box:

Operating System

Linux (embedded)

Pentaplex

Simultaneous View, Record, Playback, Backup & Remote Monitoring

Number of Channels

8 16 32 Channels

Video IN

8ch: 8 PoE, 16 32ch: 16 PoE

Video OUT

No

VGA OUT

Yes

HDMI

Yes

Audio IN

1 Line IN (RCA) for service only

Audio OUT

1 Line OUT (RCA) for service only

USB Port

1 at the back, 1 at the front

Alarm IN

4 Alarm IN

Alarm OUT

2 Alarm OUT

Video Output Resolution

3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768

PTZ control

Lorex IP PTZ cameras only

Display

8ch: 1 4 8, 16ch: 1 4 8 9 16, 32ch: 1 4 8 9 16 25 36

Live Display Speed

8ch: 240fps NTSC 200fps PAL, 16ch: 480fps NTSC 400fps PAL, 32ch: 960fps NTSC 800fps PAL

OSD

ON OFF

System Navigation

USB Mouse, IR Remote Control, Front Panel Buttons

Motion Area Setting

Fixed Grid (22×18)

Sensitivity Levels

100

Firmware Upgrade

Automatic over the Internet & via USB device and network

User Authority

By user group

Time Synchronization

Automatic time sync by NTP server

Video Compression

H.264 H.265

Audio Compression

G.711

Resolution

Up to 4K (3840×2160), 1080p (1920×1080)

Record Rate

8ch: 240fps@720p 1080p 3MP 4MP 8MP, 16ch: 480fps@720p 1080p 3MP 4MP 8MP, 32ch: 960fps@720p 1080p 3MP 4MP 8MP

Recording Resolution Setting

Per camera for different resolutions

Recording Quality Control

6 Levels

Recording Schedule

By hour, by day, by recording mode, by motion, by alarm, by channel

Pre Recording

Max. 4 Secs

Post Recording

Max. 5 Minutes

Reliability

Watch-Dog, auto-recovery after power failure

Covert Video

Yes

Playback Channel

1CH 4CH@4K, 8CH@4MP, 16CH@2MP

Playback Speed

Variable Max 16x

Playback Players

Backup Player

Search

By Time & Event

Log Search

Up to 1,000 lines for motion detected, configuration, changes, connects disconnects and video loss

Audio Play

Yes (audio camera required)

Storage

Up to 2 HDDs (SATA)

Maximum Capacity

Up to 2×6TB (12TB Max)

Backup Media

USB Flash Drive & HDD

Backup File Format

DAV or ASF File

Cloud Connection

FLIR Secure™

Supported Operating Systems

Windows™ Mac OS X

Remote Software

Client Software (PC & Mac)

Email Notification

Text with snapshot

Instant Smart Phone & Tablet

Android™, iPad®, iPhone®

DDNS

Free Lorex DDNS

System Configuration

Full setup configuration over network

Ports

Programmable by User

Network Protocol

HTTP, IPv4 IPv6, TCP IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter

Network Interface

10 100 1000-Base-TX, RJ-45

Network Bit Rate

320Mbps total, 48~8192kbps per camera

Power Consumption

Approx. 15W (no HDD included)

Supply Voltage

100VAC-240VAC, 50 60Hz

Total PoE Power Output

130W (Max 25W per Camera)

Unit Dimensions (W × D × H)

14.7 × 12.9 × 2.1 375 × 327 × 53mm

Unit Weight

8ch: 5.1lbs 2.6kg, 16 32ch: 13.2lbs 2.7kg

Operating Temperature

14° ~ 131°F -10° ~ 55°C

Humidity

10 ~ 90% RH

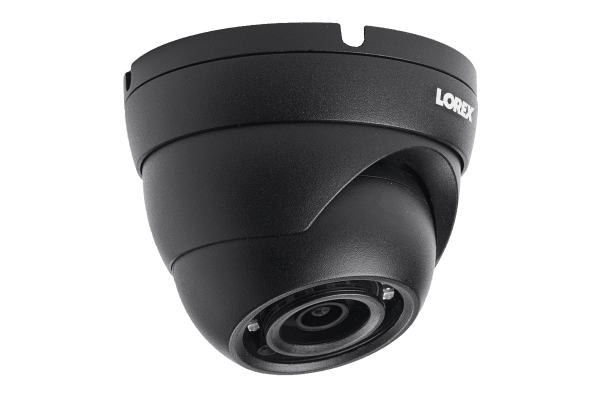

Image Sensor

1 3 4MP

Video Format

NTSC PAL

Compression

H.265 H.264

Effective Pixels

H: 2688 × V: 1520

Resolution

4MP (2688×1520) @ 20fps

Scan System

Progressive

Sync System

Internal

S N Ratio

≥46dB (AGC OFF)

Iris

EIS

AES Shutter Speed

1 3 (1 4) ~ 1 100,000s

Min. Illumination

0.38 lux without IR, 0.28 lux with IR

Video Output

IP

Lens Lens Type

2.8mm F2.0 Fixed

Field of View (Horizontal)

90°

Termination

RJ45 Ethernet 12V DC Power

IR LED Type

850nm

Night Vision Range

150ft (45m) 100ft (30m)

Color Night Vision™

Yes

Power Requirement

PoE (Power over Ethernet) 12V DC

Power Consumption

Max. 250mA 3.0W

Operating Temp. Range

-22° ~ 140°F -30° ~ 60°C

Operating Humidity Range

<95% RH

Environmental Rating

IP66 (Indoor Outdoor)

Weight

0.65lbs 0.30kg
